FP %1-3-6 is a protein foam concentrate containing hydrolysed protein and preservatives, together with a blend of surfactants to achieve maximum synergistic effect. The selected surfactant blend reduces both the surface tension of water and the interfacial tension between water and oil sufficiently to give a stable film on the fuel surface, resulting in fire-extinguishing rates superior to those obtained with synthetic-based compounds.

• Appearance: Clear brown liquid
• pH (20°C): 7.1 ± 1
• Viscosity (20°C): Min. 5 cP
• Density (20°C): 1.03 ± 0.03 gr/cm³
• Storage Temperature: Min -15°C, Max +60°C
• Sediment (20°C): Less than 0.05%
• Recommended Usage Concentration: 1-3-6%
• Pour Point: -12°C
• Freeze Point: -15°C
• Burn-Back Resistance Level: C
• Fire Fight Performance Class: III
• Suitable for use with fresh or seawater.

FP %1-3-6 is used in high-risk situations where hydrocarbons such as diesel fuel, gasoline or crude oil are stored, processed or transported. It is designed and recommended for fast fire knockdown to save human lives, in addition to preventing catastrophic fire development — particularly when used in fire-fighting vehicles at airports and fixed fire systems at heliports. It can also be used as a wetting agent against Class A/B fires, and is best suited for simultaneous use with compatible powders in twin-agent systems. FP %1-3-6 is principally recommended for fire protection in:

• Airports and heliports
• Aircraft hangars
• Industrial chemical and petroleum processing facilities
• Truck/rail loading and unloading facilities
• Flammable liquid containment areas
• Hydrocarbon storage tanks and power stations
• Mobile equipment
• Sprinkler systems
• Loading systems
• Marine terminals and vessels

FP %1-3-6 is in conformity with all national and international standards, including EN 1568:2018 Part 1, Part 2 and Part 3 directives. AFMER Chemical operates a quality management system that complies with the requirements of ISO 9001:2015.

FP %1-3-6 Concentrate can be effectively applied using most conventional foam discharge equipment at 1% dilution with fresh, salt, or hard water. For optimum performance, water hardness should not exceed 500 ppm expressed as calcium and magnesium. Non-aspirating devices, such as handline water fog/stream nozzles or standard sprinkler heads, typically produce expansion ratios of 2:1 to 4:1, while medium-expansion discharge devices typically produce ratios of 20:1 to 60:1.

FP %1-3-6 is manufactured to rigorous quality control standards. After each production run, performance tests are carried out at AFMER Chemical's Performance Laboratories.

FP %1-3-6 is suitable for use in combination with:

• Soft or hard, fresh or seawater.
• Dry powder extinguishing agents, either separately or as twin-agent systems.
• Expanded FP foams applied to a fire in sequence or simultaneously.

Its properties do not change in the event of freezing; it recovers its original properties as soon as it thaws.

FP %1-3-6 is exceptionally stable in long-term storage. A shelf life of up to 10 years can be expected when stored properly in its original container. It is suitable for storage in steel tank bodies.

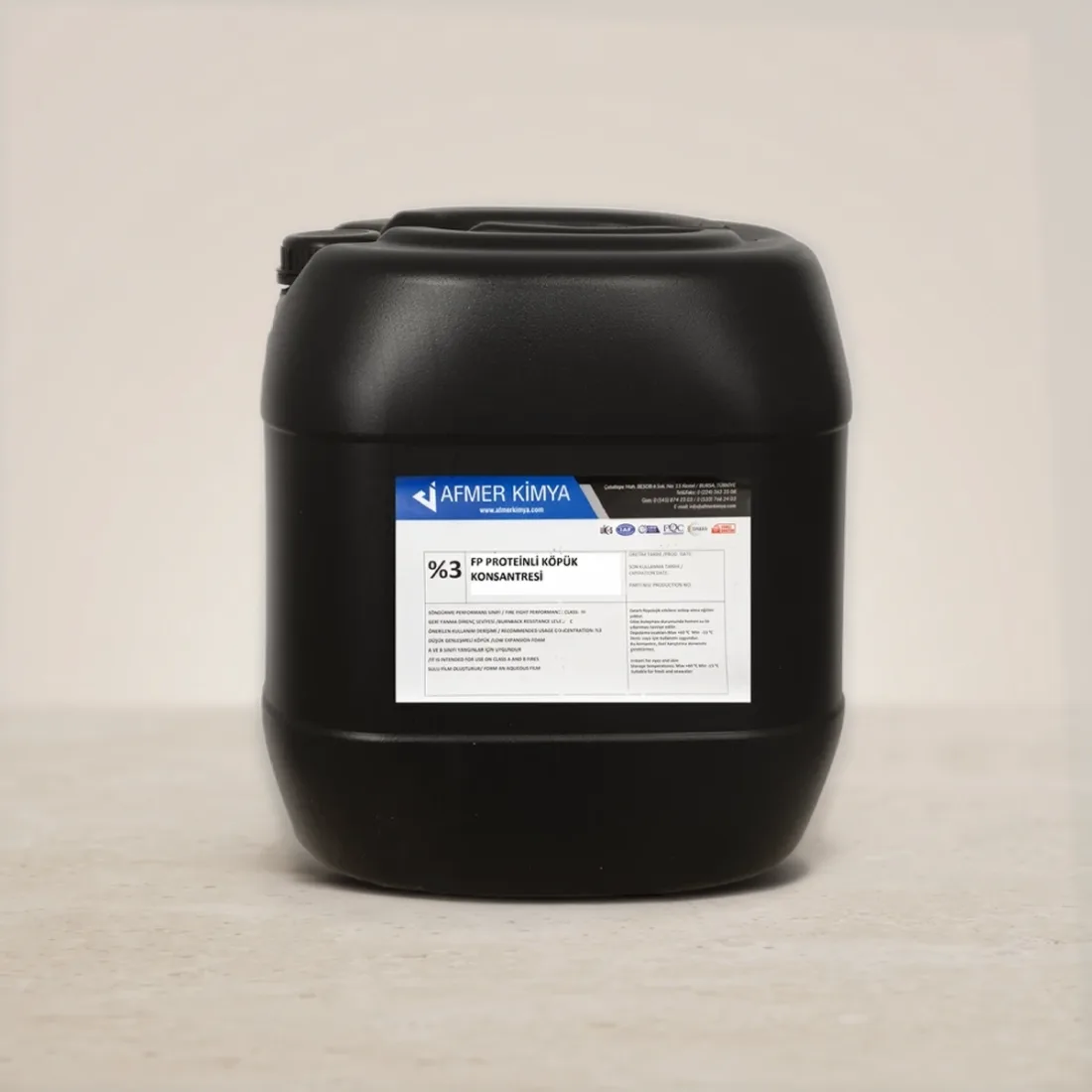

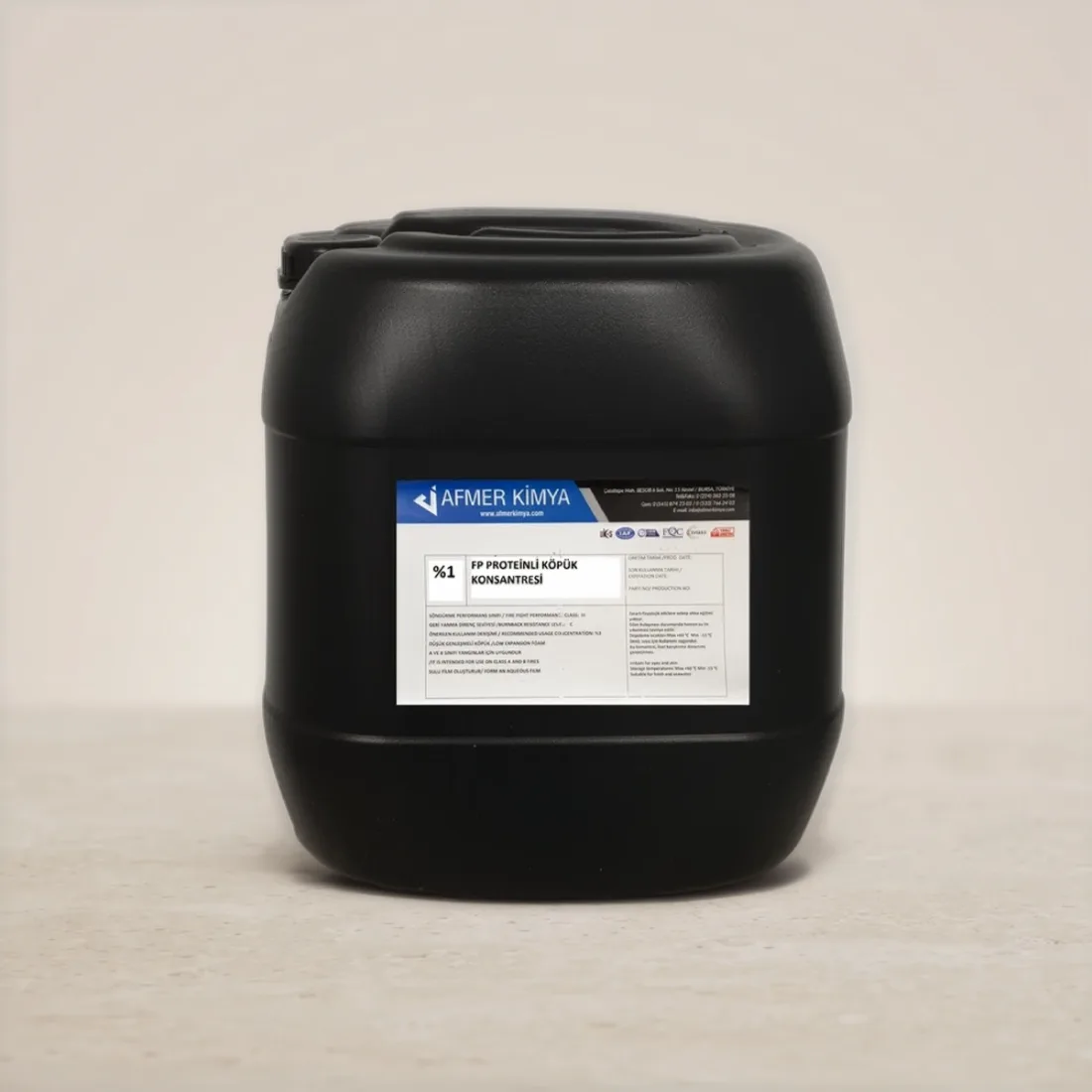

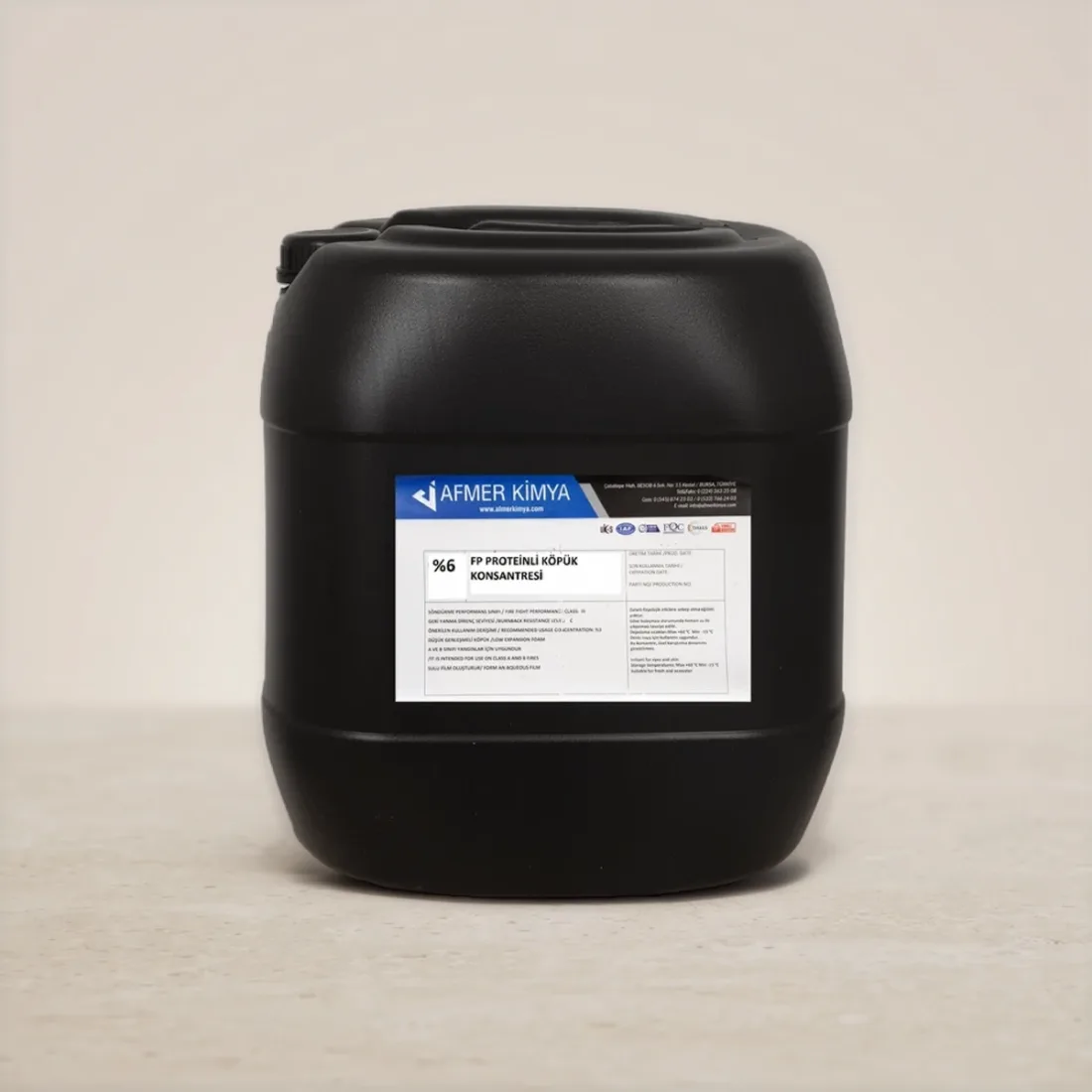

• 20 Litres (Plastic Drum): Empty 1.0 kg / Filled 21 kg — 305×295×333 mm
• 30 Litres (Plastic Drum): Empty 1.2 kg / Filled 32 kg — 380×300×360 mm
• 220 Litres (Plastic Barrel): Empty 9.0 kg / Filled 230 kg — Ø585×945H mm
• 1000 Litres (IBC Bulk): Empty 70 kg / Filled 1075 kg — 1200×1000×1165 mm

Palletizing of drums and barrels is available upon request.
